Smart Contact Chip Card Reader

PC Contact Card Reader

Your current location:Home > Products > Smart Card Reader > PC Contact Card Reader

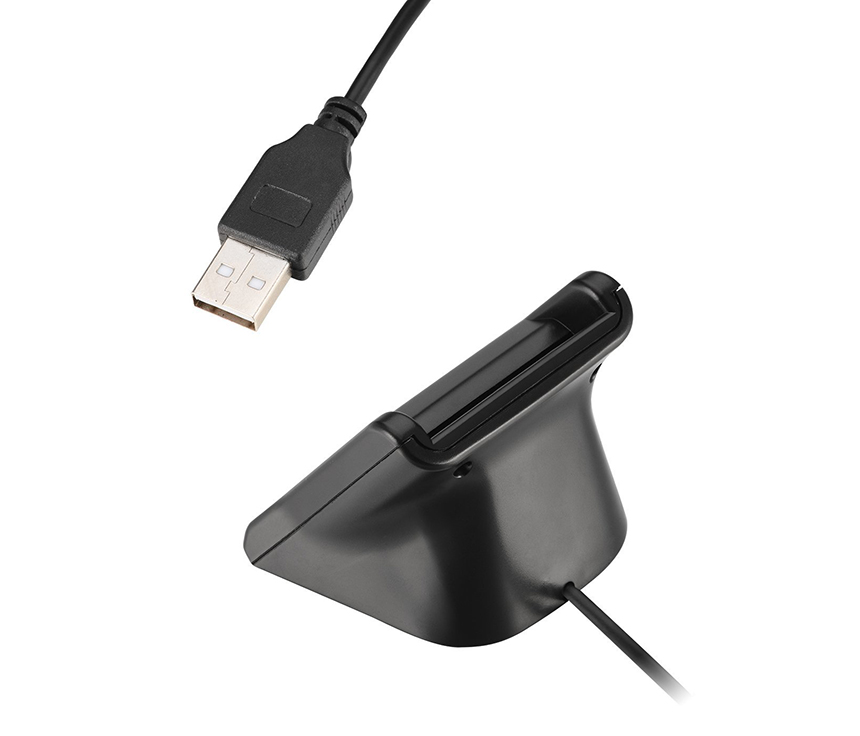

C292 Smart Card Reader

Specifications:

> Support the ISO 7816, T=0 or T=1 protocols CPU-based smart cards.
> Complies with PC/SC Version 1.0/2.0 standard and officially approved by Microsoft.
> Supported Card Types: 5V, 3V and 1.8V Smart Cards ISO 7816 Class A, B and C
> The Smart Card Reader IC is compliant with EMV 4.1 specification.
> Host Interface: USB 2.0 CCID1 (downward compliant with USB 1.1)
> Provided for online bank transaction, online shopping w/credit card.

Feature Specification

System Requirements:

PC/SC Driver Support:

Windows® 98 / ME, 200 / XP (32bit), 2003 Server

Windows® CE 5.0 (depending on hardware)

Windows® Vista (32bit / 64bit)

Windows® 7 and Above

Linux®

IC Controller	AU 9540
Host Interface	USB 2.0 CCID 1 (also compliant with USB 1.1)
Transmission Speed	12 Mbps (USB 2.0 full speed)
Standards	ISO 7816 & EMV 2 2000 Level 1
Protocols	T=0, T=1,
	2-wire: SLE 4432/42 (S=10),
	3-wire: SLE 4418/28 (S=9),
	I 2 C (S=8)
Card Size	ID-1 (full-size)
Supported card types	5 V, 3 V and 1.8 V Smart Cards
Supported card types	ISO 7816 Class A, AB and C
Status Indicator	Dual color LED
Dimensions	83.6 * 65.1 * 9.5 mm
Weight	70 g
Material	ABS
Connector cable	110 cm / 70.9"
